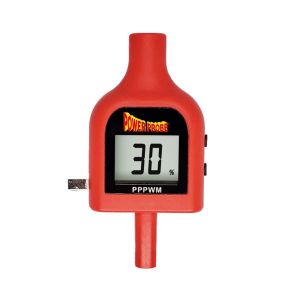

PowerProbe PPPWM Pulse Width Modulation Adaptor

Product Information

• ADJUSTABLE DUTY CYCLE from 5% to 100% with side buttons
• COMPATABLE WITH all Power Probe models with a 4mm banana jack in/out
• EASY INSTALL by removing power probe tip and inserting adapter into banana jack
• GREAT FOR diagnosing circuit fan issues

Technical Info

• Voltage Range: Operates between 9V and 24V DC
• Current Capacity: Maximum 40A output
• Frequency Range: Adjustable pulse width modulation (PWM) frequency from 10Hz to 200Hz
• Duty Cycle Range: Adjustable from 0% to 100%
• Input Protection: Overvoltage and reverse polarity protection
• Output Control: Variable output power via rotary dial
• Dimensions: Compact enclosure design for portability
• Connection Interface: Equipped with standard terminals for easy wiring
• Operating Temperature: -20°C to 60°C
• Housing: Durable and lightweight for automotive or workshop use
• Indicators: LED indicators for power status and output activity.

Narrative

The PPPWM Pulse Width Modulation Controller is an advanced tool designed for professionals and hobbyists in automotive and industrial settings. It provides precise control over DC-powered devices through an adjustable PWM signal, making it ideal for tasks requiring variable power outputs. Key Features: Adjustable Frequency and Duty Cycle: Offers complete control over PWM signals, with frequency adjustable from 10Hz to 200Hz and duty cycle adjustable between 0% and 100%. High Current Capacity: Supports up to 40A, enabling control of high-power devices. User-Friendly Operation: Features a rotary dial for seamless power adjustments and LED indicators for operational status. Enhanced Protection: Built-in overvoltage and reverse polarity protection to safeguard connected devices. Compact and Durable Design: Lightweight yet robust housing ensures portability and longevity in demanding environments. Versatile Applications: Suitable for controlling motor speeds, lighting, and other DC-powered equipment. Specifications: Voltage Input: 9V to 24V DC. Maximum Output Current: 40A. Frequency Range: 10Hz to 200Hz. Duty Cycle Adjustment: 0% to 100%. Operating Temperature: -20°C to 60°C. Protection Features: Overvoltage and reverse polarity protection. Dimensions: Compact and portable. Applications: Controlling motor speeds in automotive systems. Regulating power to DC lighting setups. Adjusting power levels in various DC-powered devices in workshops or industrial settings.
