PowerProbe PPECT3000 Power Probe Circuit Tracer Kit

Product Information

• Signal Locking will show the correct direction to a short to ground
• Signal distance bar indicates distance height from short to ground or open circuits
• LED light on receiver illuminates the work space area
• Longer 10-minute Auto shut off time

Technical Info

• Operating Voltage (Transmitter): 6V-48V DC
• Current Consumption (Transmitter): <200mA
• Operating Voltage (Receiver): 2 AAA batteries
• Signal Frequency: 4kHz polarized signal
• Circuit Testing Modes: Open circuit tracking
• short circuit tracking
• ground circuit tracking
• Operating Temperature: Up to 50°C
• Storage Temperature: Up to 70°C
• Maximum Humidity: 80% non-condensing
• Altitude Limit: <2000m
• Signal Detection: Indicates short and open circuits using visual and audio cues
• Sensitivity Adjustment: Adjustable for varying signal strengths
• Auto Shutoff: Receiver turns off after 10 minutes of inactivity
• Accessories Compatibility: Standard 4mm banana jack connectors for custom adapters
• Cable Length: 6m transmitter power cable for extended reach.

Narrative

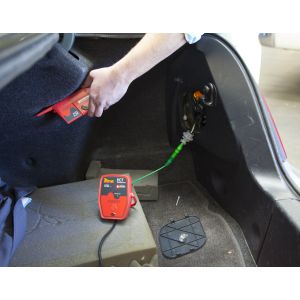

The ECT3000 Circuit Tracker is a versatile diagnostic tool designed to help automotive professionals efficiently locate and diagnose open and short circuits in vehicle wiring systems. By transmitting a polarized 4kHz signal, it simplifies troubleshooting by enabling quick detection of problematic circuits without disassembling complex wiring harnesses. Key Features: Short Circuit Tracking: Pinpoints shorts and provides directional guidance with a polarized signal. Open Circuit Tracking: Detects breaks or interruptions in the wiring and follows the signal across obstacles like carpets or panels. Adjustable Sensitivity: Allows users to fine-tune the detection range for precise diagnostics. Clear Feedback: Offers both visual LED indicators and audible alerts for easy interpretation of circuit status. Extended Range: The 6m transmitter cable ensures accessibility across large vehicles. Safety and Protection: Operates within safe voltage and current limits, avoiding damage to sensitive electronics. Auto Shutoff: Conserves battery life by turning off the receiver after 10 minutes of inactivity. Specifications: Transmitter Voltage Range: 6V to 48V DC. Receiver Power: 2 AAA batteries. Signal Frequency: 4kHz. Temperature Limits: 50°C operating, 70°C storage. Humidity Limit: 80% non-condensing. Altitude: Functional below 2000m. Applications: Locating short circuits in automotive wiring systems. Tracking open circuits or wiring breaks. Identifying intermittent electrical issues. Diagnosing and testing vehicle ground circuits.
