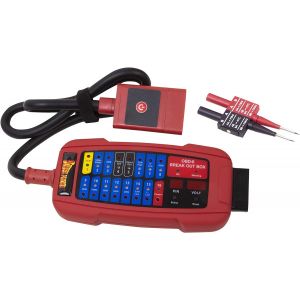

PowerProbe PPECB Obd Ii Break Out Box

Product Information

• Power Probe OBD II Breakout Testing Box
• Tests DLC (OBD port) for any abnormalities, such as shorting or reverse polarity at the pins before connecting other diagnostic equipment.
• quickly accss all 16 pins connections during repair and diagnosois of the vehicle

Technical Info

• Voltage Monitoring Range: 7.0V to 30.0V DC input
• Maximum Load: Up to 3.0A output
• Overload Protection: PTC self-healing fuse
• LED Displays: 3-digit resolution of 0.1V
• Banana Sockets: 16 outputs with 1.0mm diameter and LED indicators
• Protocols Detected: PWM (J1850)
• VPW (J1850)
• ISO 9141-2
• DIS/ISO 14230-4
• CAN bus (J-2284)
• Temperature Range: Suitable for automotive environments
• Humidity Tolerance: Less than 70%
• Cable Length: 30 inches (0.8 meters)
• Polarity Protection: Detects reverse polarity with red LED for pins 4 and 5
• Voltage Alerts: Slow beeps for low voltage (<11.8V for 12V systems)
• fast beeps for high voltage (>15.5V for 12V systems)
• Diagnostic Features: Monitors individual pins for voltage presence
• detects communication protocol signals
• DLC Connector Flashlight: Built-in light for easier connection
• Battery Type for Flashlight: CR1220 coin battery.

Narrative

The PPECB OBD-II Break Out Box is a robust diagnostic tool designed to ensure safe and effective vehicle diagnostics. It allows technicians to test the vehicle's OBD port for abnormalities, such as short circuits or reverse polarity, before connecting a diagnostic tool. With its advanced monitoring capabilities, it provides live feedback on voltages, protocols, and specific pin conditions. Key Features: Comprehensive Monitoring: Displays voltages for individual pins and detects abnormalities like short circuits and reverse polarity. Protocol Detection: Compatible with PWM, VPW, ISO, and CAN bus communication protocols. Voltage Alerts: Audio warnings for low (<11.8V) or high (>15.5V) voltage conditions to prevent equipment damage. Built-In Flashlight: Illuminates the DLC connector for easier access in low-light conditions. LED Indicators: Color-coded LEDs provide real-time feedback on voltage, protocol signals, and grounding. Reverse Polarity Protection: Safeguards devices by detecting and alerting improper polarity. User-Friendly Operation: Simple SELECT and RESET buttons for pin voltage testing and default settings. Specifications: Operating Voltage: 7.0V to 30.0V. Maximum Load: 3.0A. Display Resolution: 0.1V with a 3-digit LED. Temperature Range: Suitable for automotive conditions. Cable Length: 30 inches (0.8 meters). Certifications: FCC, CE. Applications: Diagnosing OBD port faults in 12V and 24V automotive systems. Monitoring voltage and communication protocols during repairs or programming. Protecting diagnostic tools from potential damage.
