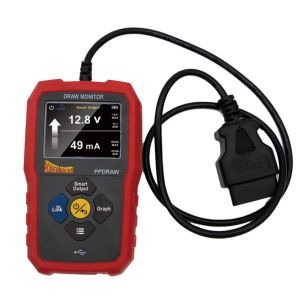

PowerProbe PPDRAW Power Probe Draw Monitor

Product Information

• Monitors car battery voltage and parasitic current draw for accurate diagnostics.
• Connects via 16-pin OBDII connector to supply 12V power and prevent data loss during battery replacement.
• Graphing mode displays voltage and amperage as a waveform, allowing in-depth electrical system analysis.
• Rechargeable high-capacity lithium-ion battery with USB-C charging and multi-color TFT display.
• Adjustable current output alarm and auto power-off settings to protect the vehicle’s electrical system.
• View and record real-time data via Bluetooth on the Power Probe Link app for enhanced performance tracking.

Technical Info

• Voltage Monitoring Monitors car battery voltage (0-30V)
• Current Monitoring Detects leakage current with a resolution of 1mA
• Smart Output: Outputs 12V at up to 10A for backup power supply during battery replacement
• Bluetooth Connectivity Bluetooth 5.0 for remote monitoring via PowerProbe Link App
• Display: 2.8-inch TFT color screen with graphical and numerical modes
• Graphical Mode: Displays 20-second voltage and current history as waveforms
• Safety Features: Includes overvoltage (above 30V), overcurrent (above 10A), and temperature protection
• Power Source: Built-in 14.4V, 3000mAh lithium battery
• Charging Interface: USB Type-C, supports PD fast charging
• System Settings: Configurable auto power-off time and current alarm thresholds
• Certifications: FCC, CE, ETL-us, UKCA, EAC
• Interface: Standard OBDII input/output interface
• Durability: Designed for automotive environments.

Narrative

The PPDRAW Draw Monitor is an advanced diagnostic tool tailored for monitoring automotive battery performance and electrical systems. Designed with professionals in mind, it supports precise voltage and current analysis, graphical data display, and backup power functionality during battery replacements. Its Bluetooth connectivity and robust safety features ensure seamless and secure operation in diverse automotive environments. Key Features: Voltage and Current Monitoring: Monitors battery voltage (0-30V) and detects leakage current with high accuracy. Smart Output: Provides 12V output up to 10A to prevent data loss during battery replacement or system maintenance. Graphical Display: Offers a visual representation of 20-second voltage and current history, making diagnostics intuitive. Wireless Control: Integrated Bluetooth 5.0 for remote operation via the PowerProbe Link App. Safety Protections: Includes overvoltage, overcurrent, and temperature protection for device and vehicle safety. Easy-to-Use Display: 2.8-inch TFT color screen with graphical and numerical modes for clear and detailed readings. Fast Charging: USB Type-C port supports PD fast charging, ensuring minimal downtime. Specifications: Voltage Monitoring Range: 0-30V. Current Monitoring Range: Up to 10A with 1mA resolution. Battery: Built-in 14.4V, 3000mAh lithium battery. Display Resolution: 240x320 pixels. Wireless Connectivity: Bluetooth 5.0. Safety Ratings: Certified by FCC, CE, ETL-us, UKCA, EAC. Applications: Diagnostic and monitoring tool for automotive batteries and electrical systems. Backup power during vehicle battery replacement. Detecting and analyzing voltage leaks or irregularities.
