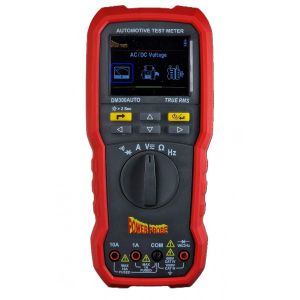

PowerProbe PPDM300AUTO Digital Multimeter Dm300auto

Product Information

• Measures current Flowing through fuses without removing the fuse (up to 80A)
• Fuse Voltage drop testing
• Guided automotive test mode
• AC/DC Voltage measurements up to 1000V
• Current measurements up to 30A
• Measures resistance, continuity and diode testing
• Frequency and duty cycle for PWM signals

Technical Info

• Measurement Capabilities: True RMS AC/DC voltage up to 1000V
• DC current up to 30A
• resistance up to 40.00MΩ
• Automotive-Specific Functions: Cranking voltage tests for 12V/24V starters
• alternator charging tests for normal/smart alternators
• Fuse Testing: Measures current through fuses without removal (2A to 80A)
• Frequency and Duty Cycle Measurement: Measures PWM signals up to 20.00kHz and duty cycles from 1%-99%
• Continuity and Diode Testing: Provides audible and visual feedback
• Display: 2.8” TFT color LCD with a user-friendly menu
• Power Supply: Powered by 3 AAA alkaline batteries
• Durability: Drop protection for up to 4 feet
• Safety Standards: CAT IV 600V
• CAT III 1000V rated
• Dimensions: 92.6mm x 205mm x 57.5mm
• weight: 588g
• Accessories: Includes 30A probe
• test leads
• fuse current probe set
• alligator clips.

Narrative

The PPDM300 Automotive Test Meter is a versatile and indispensable tool for automotive professionals. Combining a full True RMS digital multimeter with advanced automotive-specific diagnostics, it allows users to perform comprehensive testing on electrical systems with ease. From standard voltage and current measurements to fuse testing without removal, the PPDM300 provides reliable and efficient results. Key Features: Advanced Diagnostics: Includes cranking voltage tests and alternator charging diagnostics for 12V/24V systems, supporting normal and smart alternators. Fuse Testing: Tests fuse current (2A to 80A) without needing removal, saving time during diagnostics. High-Accuracy Measurements: True RMS AC/DC voltage measurements up to 1000V;DC current up to 30A;resistance up to 40.00MΩ. Frequency and Duty Cycle: Measures PWM signals up to 20kHz and duty cycles between 1%-99%. Ease of Use: Equipped with a 2.8” TFT color LCD and an intuitive interface, it ensures quick and accurate operation. Safety and Durability: Certified CAT IV 600V and CAT III 1000V for high-voltage applications;drop-tested for up to 4 feet. Compact Design: Portable and robust, designed for field and workshop use. Specifications: Voltage Range: 1000V AC/DC Current Measurement: In-line DC current up to 30A with an included 30A probe. Fuse Current Range: 2A to 80A (MINI, ATC, MAXI fuses). Resistance Range: Up to 40.00MΩ. Frequency and Duty Cycle: Up to 20.00kHz and 1%-99%, respectively. Applications: Automotive repair and maintenance. Diagnosing starter and alternator performance. Electrical troubleshooting in vehicles.
